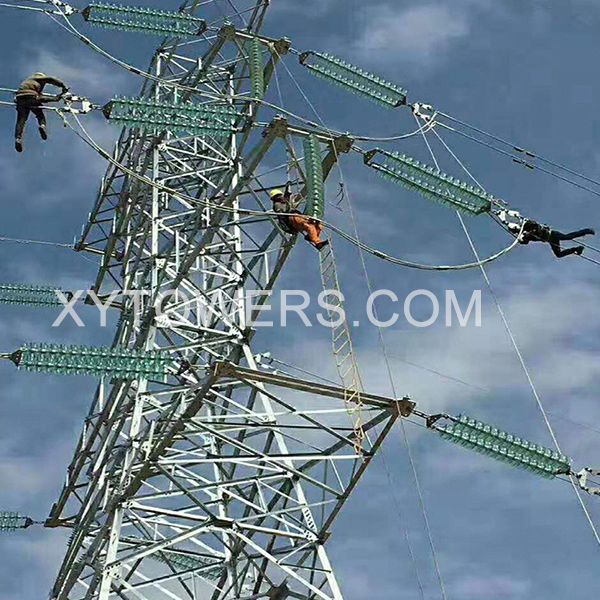

500kV Power Line Tower
Inkcazo yenqaba
Inqaba yokuhanjiswa sisakhiwo eside, ngokuqhelekileyo inqaba yensimbi yensimbi, esetyenziselwa ukuxhasa umgca wamandla ongaphezulu. Sinikezela ngezi mveliso ngoncedo lwe
abasebenzi abakhutheleyo abanamava amakhulu kule ndawo. Sihamba kuvavanyo lomgca oluneenkcukacha, iimephu zeendlela, ukujonga iinqaba, ubume betshathi kunye noxwebhu lobuchule ngelixa sibonelela ngezi mveliso.
Imveliso yethu igubungela i-11kV ukuya kwi-500kV inqaba yamandla ombane aphezulu, ngeli lixa ibandakanya iindidi ezahlukeneyo zenqaba umzekelo inqaba yokunqunyanyiswa, i-strain tower, i-angle tower, i-end tower njl.
Ukongeza, sisenohlobo lwenqaba eyilelweyo enkulu kunye nenkonzo yoyilo ekufuneka inikezelwe ngelixa abathengi bengenayo imizobo.
| Igama lemveliso | INqaba yoMbane oPhezulu we-500kV uThutho lwaMandla oMbane |
| Uphawu | XY Towers |
| Ibakala lombane | 550kV |
| Ubude obuqhelekileyo | 18-55m |
| Amanani e-bundle conductor | 1-8 |
| Isantya somoya | 120km/h |
| Ubomi bonke | Ngaphezu kweminyaka engama-30 |
| Umgangatho wemveliso | I-GB/T2694-2018 okanye umthengi ofunekayo |
| Impahla engekasilwa | Q255B/Q355B/Q420B/Q460B |
| Umgangatho weMaterial ekrwada | GB/T700-2006,ISO630-1995;GB/T1591-2018;GB/T706-2016 okanye kufuneka uMthengi |
| Ukutyeba | ingelosi yentsimbi L40 * 40 * 3-L250 * 250 * 25; Icwecwe 5mm-80mm |
| Inkqubo yeMveliso | Uvavanyo lwemathiriyeli ekrwada → Ukusikwa →Ukubumba okanye ukugoba →Ukuqinisekiswa kobukhulu →iFlenge/Amacandelo okuwelda →Ulungelelwaniso → Ishushu iGanvanishi →Uhlengahlengiso →Iipakethi→ ukuthunyelwa |
| Umgangatho wokuwelda | AWS D1.1 |
| Unyango lomphezulu | Idiphu eshushu ifakwe igalvanized |
| Umgangatho owenziwe ngegalvanized | ISO1461 ASTM A123 |
| Umbala | Customized |
| Isiqhoboshi | I-GB/T5782-2000; ISO4014-1999 okanye uMthengi ofunekayo |
| Ukukala ukusebenza kwebholiti | 4.8;6.8;8.8 |
| Iphathi ezisecaleni | Iibholithi ezi-5% ziya kusiwa |
| Isatifikethi | ISO9001:2015 |
| Umthamo | 30,000 iitoni / ngonyaka |
| Ixesha lokuya eShanghai Port | 5-7 iintsuku |
| Ixesha lokuzisa | Ngokwesiqhelo phakathi kweentsuku ezingama-20 kuxhomekeke kubungakanani bemfuno |
| ubungakanani kunye nokunyamezela ubunzima | 1% |
| ubuncinci bobungakanani bomyalelo | Iseti e-1 |
I-Hot-dip galvanizing
Umgangatho we-Hot-dip galvanizing yenye yamandla ethu, i-CEO yethu uMnu. Lee yingcali kweli candelo elinodumo eNtshona-China. Iqela lethu linamava amakhulu kwinkqubo ye-HDG kwaye lilungile ngakumbi ekuphatheni inqaba kwiindawo ezinomhlwa.
Umgangatho owenziwe ngegalvanized: ISO: 1461-2002.
| Into |
Ukutyeba kwe-zinc yokwambathisa |
Amandla okubambelela |
Ukonakala nguCuSo4 |
| Umgangatho kunye nemfuneko |
≧86μm |
Idyasi yeZinc ayinakuhluthwa kwaye iphakanyiswe ngehamile |
4 amaxesha |
Intshayelelo emfutshane yenkqubo yokuvelisa iTower kunye nobuchwepheshe.
1. Lofting
Iikhompyuter zisetyenziselwa ukwenza i-stake kwi-XY Tower. Ulwakhiwo lwentsimbi enemigangatho emithathu yoyilo lwesoftware yeTMA yamkelwe. Inkqubo ineempawu zokuchaneka okuphezulu, ukusetyenziswa okunamandla, kunye nokuqondakalayo. Ukusebenzisa le teknoloji kunokuphucula ukusebenza kakuhle kunye nokuqinisekisa ukuchaneka kwe-lofting. Ngokweempawu zesakhiwo sokuqhotyoshelwa kwentsimbi, inkampani yethu iqulunqe inkqubo yokukhangela ubungakanani bejometri kunye neprogram yokuzoba ye-attachment yentsimbi. Inkqubo ineempawu zokuchaneka okuphezulu, ukusetyenziswa okunamandla, kunye nokuqondakalayo. Ukusebenzisa le teknoloji ayinakuphucula kuphela ukusebenza kakuhle, kodwa iphinde iqinisekise ukuchaneka komzobo.
2. Sika
I-XYTower ithatha izixhobo zokusika ipleyiti enkulu, izixhobo zokusika intsimbi yecandelo kunye nezixhobo eziphambili zokusika umlilo ozenzekelayo, okwazi ngokupheleleyo ukuqinisekisa ukuba umgangatho wokusika intsimbi uhlangabezana neemfuno zemigangatho yelizwe kunye namaxwebhu afanelekileyo obugcisa.
3. Ukugoba
I-XYTower isebenzisa izixhobo ezinkulu ze-hydraulic kunye ne-self-developed professional molds ukugoba ukugoba ukuqinisekisa ukuba ukuchaneka kokucubungula kuyahlangabezana neemfuno zomgangatho we-GB2694-81 kunye namaxwebhu obugcisa bethenda.
4. Ukwenza umngxuma
I-XYTower inomgangatho wasekhaya ophucukileyo we-CNC yentsimbi yokunciphisa umgca wokucutshungulwa ngokuzenzekelayo kunye nezinye izixhobo zobuchwephesha bokubetha kunye nezixhobo zokomba, kwaye ikwazi ngokupheleleyo ukuqinisekisa ukuba umgangatho wemingxuma uyahlangabezana nemigangatho kunye neemfuno zomsebenzisi.
5. Sika iikona
Izixhobo zokusika i-angle eziphuhliswe yinkampani yethu zinokunqumla iindlela ezahlukeneyo zentsimbi ye-angle, kwaye inokuqinisekisa ngokupheleleyo ukuchaneka kwe-angle cut.
6. Iingcambu ezicocekileyo, ifosholo ngasemva, cwangcisa i-bevel
I-XYTower inezinga eliphezulu lasekhaya lezixhobo zokucwangcisa, ngakumbi i-high-speed planer ene-stroke yeemitha ezi-3, eyona ilungele ukusetyenzwa kwezixhobo ezinkulu zentsimbi zokususa iingcambu, ukuhlatywa, kunye ne-beveling workpieces. Ukuchaneka kokucubungula kunokuhlangabezana ngokupheleleyo nemigangatho efanelekileyo kunye neMibonelelo yamaxwebhu obugcisa.
7. Ukuwelda
I-XYTower ithatha inqanaba eliphambili lasekhaya legesi ye-carbon dioxide ekhuselweyo kumatshini wokuwelda, kwaye inamagcisa anesatifikethi sesiqinisekiso sokuwelda ukuze ayisebenzise ukuqinisekisa umgangatho wokuwelda. Ukuze kuqinisekiswe imilinganiselo yejometri yamalungu adityanisiweyo, inkampani yethu iya kusebenzisa ukubumba kwi-butt welding. Ukuqinisekisa ukuzinza kwe-welding, inkampani yethu iya kusebenzisa izixhobo zokomisa zobuchwephesha kunye nezixhobo zokugcina ubushushu ukomisa nokugcina intonga ye-welding. Ngoko ke, iyakwazi ngokupheleleyo ukuqinisekisa ukuba umgangatho we-welding uhlangabezana nemigangatho efanelekileyo.
